COMPONENTS

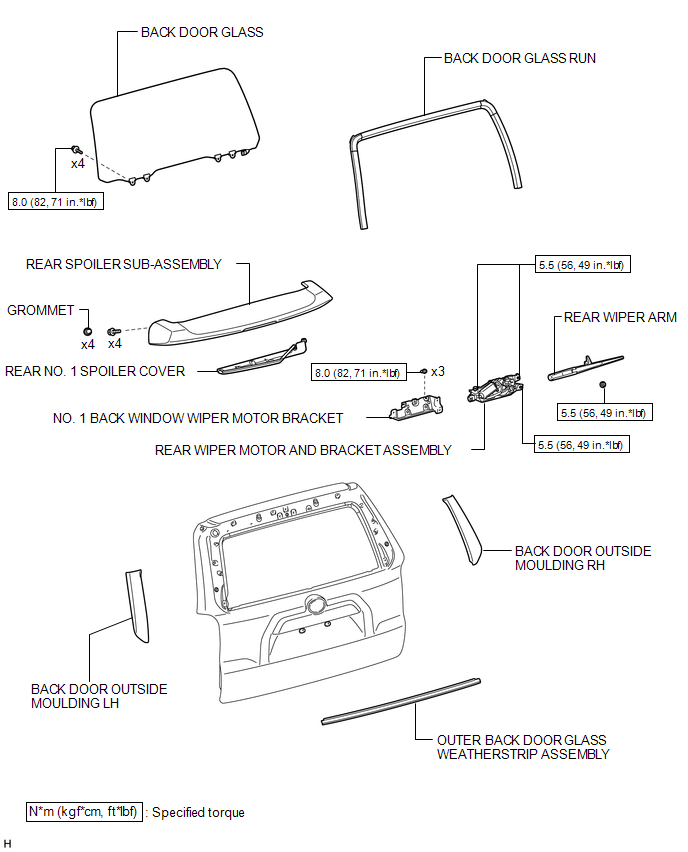

ILLUSTRATION

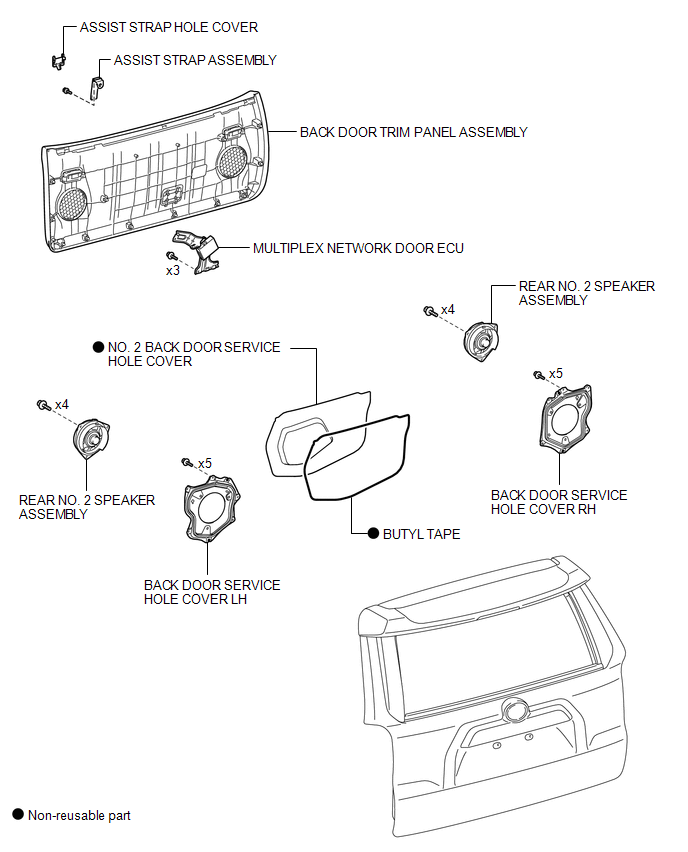

ILLUSTRATION
System Diagram
SYSTEM DIAGRAM
Terminal No. (Symbol)
Wire Harness Side
F14
1 (CANH)
CAN communication line (V Bus)
2 (CANL)
CAN communication line (V Bus)
3 (MSS ...
Installation
INSTALLATION
PROCEDURE
1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
(a) Install the stereo component amplifier to the No. 1 speaker assembly with
box with the 3 bolts.
2. INSTALL NO. 1 SPEAKER ASSEMBLY WITH BOX
(a) Attach the 2 claws, lower ...
