Toyota 4Runner: Disassembly

DISASSEMBLY

PROCEDURE

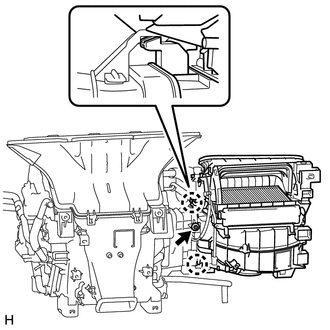

1. REMOVE BLOWER ASSEMBLY

(a) Remove the screw.


(b) Detach the 2 claws and remove the blower unit assembly.

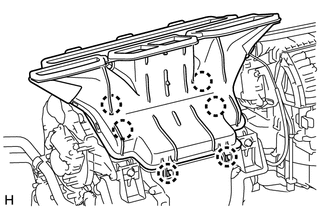

2. REMOVE DEFROSTER NOZZLE ASSEMBLY

(a) Detach the 6 claws and remove the defroster nozzle assembly.

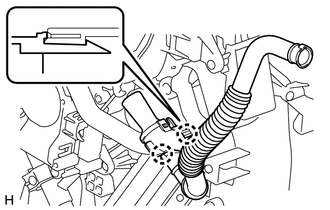

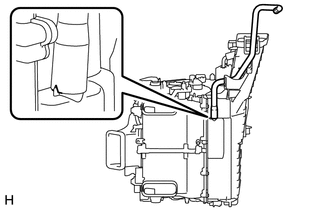

3. REMOVE ASPIRATOR HOSE

(a) Detach the 2 claws and remove the aspirator hose.


4. REMOVE DRAIN COOLER HOSE

(a) Remove the drain cooler hose.


5. REMOVE QUICK HEATER ASSEMBLY (w/ PTC Heater)

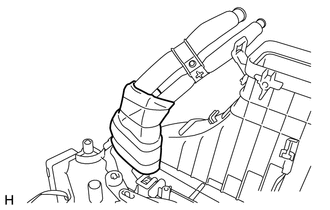

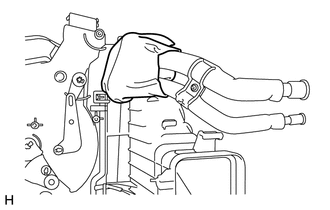

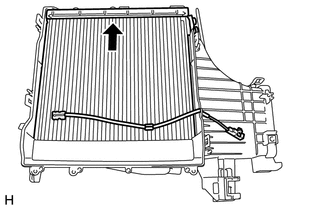

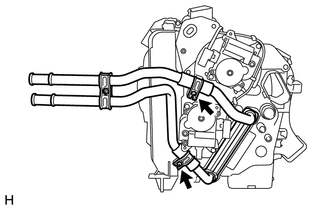

6. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY


(a) Remove the 2 screws and 2 radiator brackets.

(b) Remove the radiator.

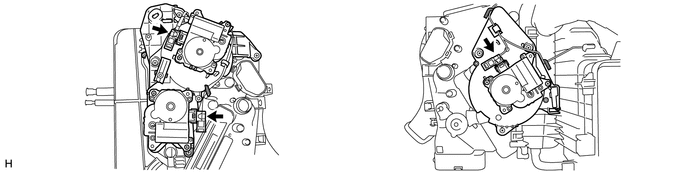

7. REMOVE AIR CONDITIONING HARNESS


(a) Disconnect the connectors.

(b) Detach the clamps and remove the harness.

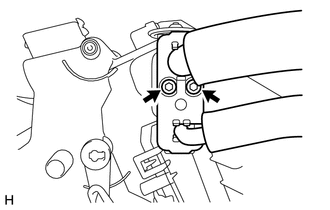

8. REMOVE AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

(a) Remove the packing.


(b) Remove the butyl tape.


(c) Using a 4 mm hexagon wrench, remove the 2 hexagon bolts and the, air conditioning tube and accessory assembly.


(d) Remove the 2 O-rings from the air conditioning tube and accessory assembly.

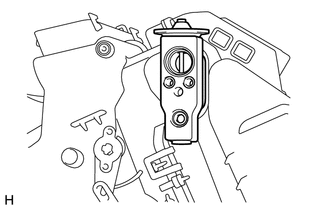

9. REMOVE COOLER EXPANSION VALVE

(a) Remove the expansion valve.

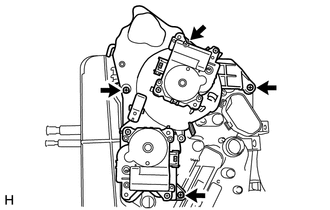

10. REMOVE DAMPER SERVO SUB-ASSEMBLY LH

(a) Remove the 4 screws and damper servo sub-assembly.

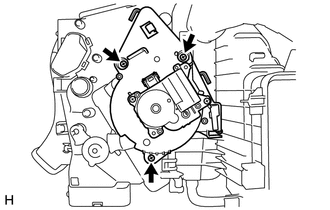

11. REMOVE DAMPER SERVO SUB-ASSEMBLY RH


(a) Remove the 3 screws and damper servo sub-assembly.

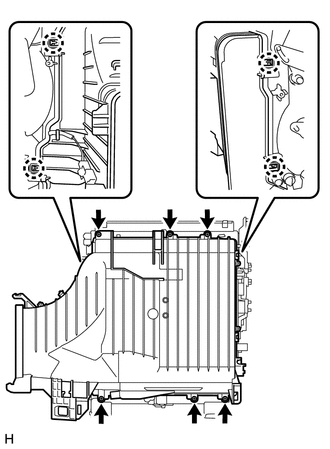

12. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

(a) Remove the 6 screws.


(b) Detach the 4 claws and remove the unit case.

(c) Remove the evaporator.


(d) Remove the 2 O-rings from the evaporator.

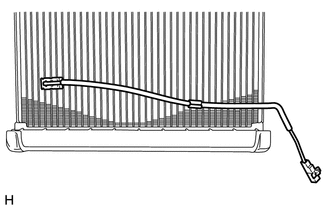

13. REMOVE NO. 1 COOLER THERMISTOR

(a) Remove the sensor.
