Toyota 4Runner: Identification Information
Vehicle Identification And Serial Numbers
VEHICLE IDENTIFICATION AND SERIAL NUMBERS
1. VEHICLE IDENTIFICATION NUMBER
(a) The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustrations.

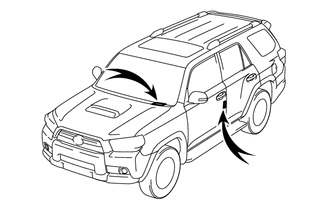

(1) Vehicle Identification Number Plate and Name Label
2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
(a) The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.

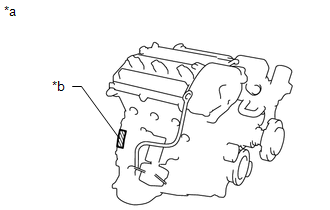

(1) Engine Serial Number
Text in Illustration
|
*a |
1GR-FE |
|
*b |
Engine Serial Number |

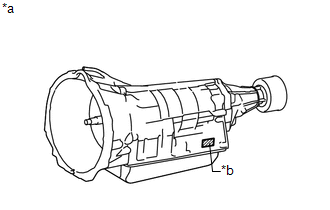

(2) Transmission Serial Number
Text in Illustration
|
*a |
A750F, A750E |
|
*b |
Transmission Serial Number |
