Toyota 4Runner: Inspection

Toyota 4Runner Service Manual / Vehicle Exterior / Window / Glass / Power Window Regulator Motor(for Rear Door) / Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

(a) Check that the motor gear rotates smoothly as follows.

NOTICE:

Do not apply positive (+) battery voltage to any terminals except terminal 2 (B) to avoid damaging the pulse sensor inside the motor.

OK:

Measurement Condition	Specified Condition
Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery cable to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 10 (UP). Disconnect and reconnect the negative (-) battery terminal to terminal 10 (UP) within 1 second.	Motor gear rotates clockwise (Up)
Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery terminal to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 7 (DOWN). Disconnect and reconnect the negative (-) battery terminal to terminal 7 (DOWN) within 1 second.	Motor gear rotates counterclockwise (Down)

If the result is not as specified, replace the rear power window regulator motor assembly.

CAUTION:

Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly to the door.

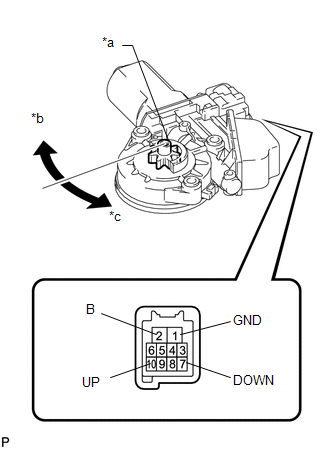

Text in Illustration

*a	Motor Gear
*b	Clockwise
*c	Counterclockwise

2. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(a) Check that the motor gear rotates smoothly as follows.

NOTICE:

Do not apply positive (+) battery voltage to any terminals except terminal 2 (B) to avoid damaging the pulse sensor inside the motor.

OK:

Measurement Condition	Specified Condition
Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery terminal to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 10 (UP). Disconnect and reconnect the negative (-) battery terminal to terminal 10 (UP) within 1 second.	Motor gear rotates counterclockwise (Up)
Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery terminal to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 7 (DOWN). Disconnect and reconnect the negative (-) battery terminal to terminal 7 (DOWN) within 1 second.	Motor gear rotates clockwise (Down)

If the result is not as specified, replace the rear regulator motor assembly.

CAUTION:

Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly to the door.

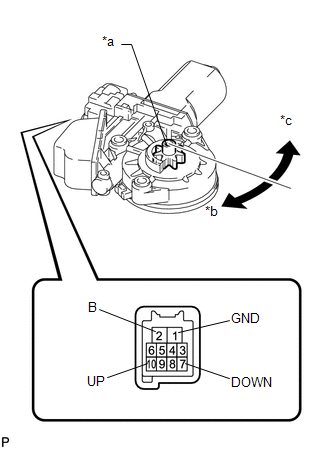

Text in Illustration

*a	Motor Gear
*b	Clockwise
*c	Counterclockwise
