INSTALLATION
CAUTION / NOTICE / HINT
HINT:
PROCEDURE
1. INSTALL POWER LIFT STEP ASSEMBLY
(a) Install the power lift step assembly with the 2 nuts and 4 bolts.
Torque:
16 N·m {163 kgf·cm, 12 ft·lbf}
(b) Connect the connector.
2. INSTALL STEP PLATE
(a) Open the door and deploy the side auto step fully.

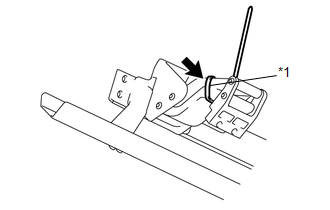

(b) Using a 5 mm hexagon wrench, install the step plate with the 4 hexagon bolts. Torque: 12 N·m {122 kgf·cm, 9 ft·lbf} HINT: After replacing the power lift step assembly with a new one, install the step plate, and then cut off the clamp with the power lift step assembly extended. Text in Illustration
|
|
3. INSTALL ROCKER PANEL MOULDING (w/ Intuitive Parking Assist System)
(See page )
