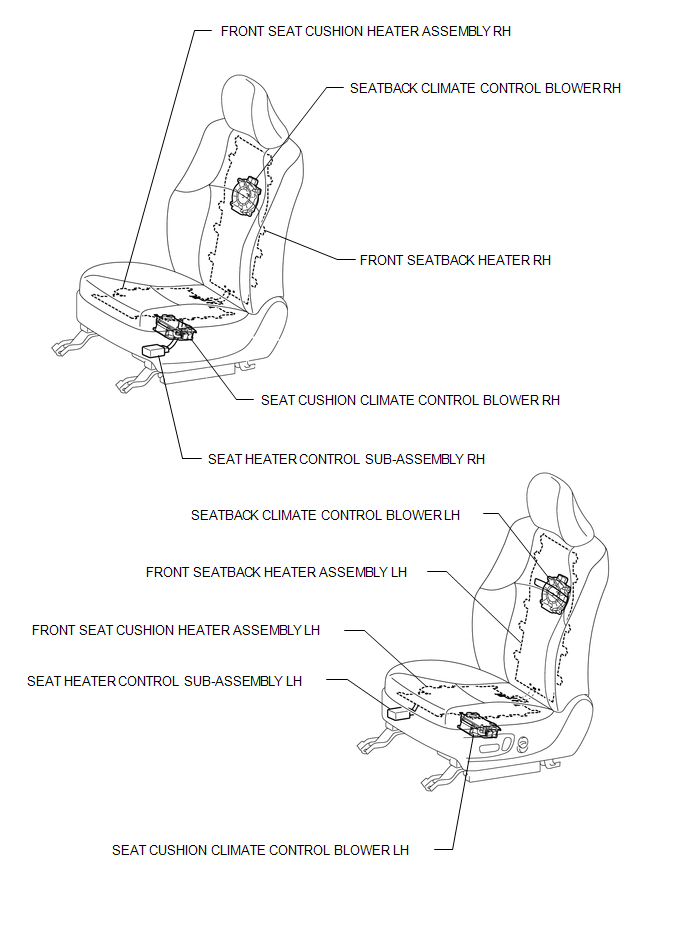

Toyota 4Runner: Parts Location

Climate Control Seat System

...

System Description

SYSTEM DESCRIPTION 1. GENERAL (a) The heater and blower both have 3 levels controlled by operating the dial-type refreshing seat switch, which is located in the upper console panel. (b) The on/of ...

Other materials about Toyota 4Runner:

Terminals Of Ecu
TERMINALS OF ECU 1. CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) (a) Measure the voltage according to the value(s) in the table below. Terminal No. (Symbol) Wiring Color Termin ...

Problem Symptoms Table
PROBLEM SYMPTOMS TABLE HINT: Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" ...
