Toyota 4Runner: Reassembly

Toyota 4Runner Service Manual / Vehicle Exterior / Lighting (ext) / Fog Light Assembly / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for both the RH and LH sides.
The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL FOG LIGHT BULB

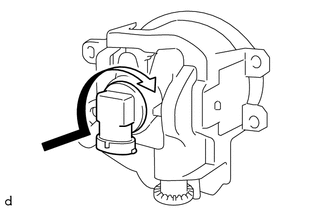

(a) Turn the bulb in the direction indicated by the arrow to install it.

Adjustment

ADJUSTMENT PROCEDURE 1. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (a) Prepare the vehicle: Make sure that the vehicle has no damage or deformation around the headlights. Fill ...

Installation

INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for both the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. INSTALL FOG LIGHT ASS ...
