REMOVAL
PROCEDURE
1. REMOVE REAR CONSOLE BOX ASSEMBLY
(a) Remove the rear console box (See page ).
2. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Move the shift lever to N.
(b) Disconnect the transmission control cable end from the shift lever. |
|

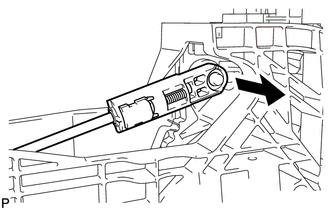

(c) Rotate the socket counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer. NOTICE: Do not over-rotate the nut as it will come off the internal spring and the transmission control cable will not be reusable. |
|
3. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
(a) Disconnect the 3 connectors and detach the 4 wire harness clamps.
(b) Remove the 4 bolts and transmission floor shift.
4. REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET
(a) Remove the 2 screws and console box mounting bracket.
