Precaution
PRECAUTION
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not perform tests with a high voltage insulation resistance tester.
4. Never disconnect the battery while the engine is running.
5. Check that the charging cable nut is tightened on terminal B of the generator and the engine room relay block.

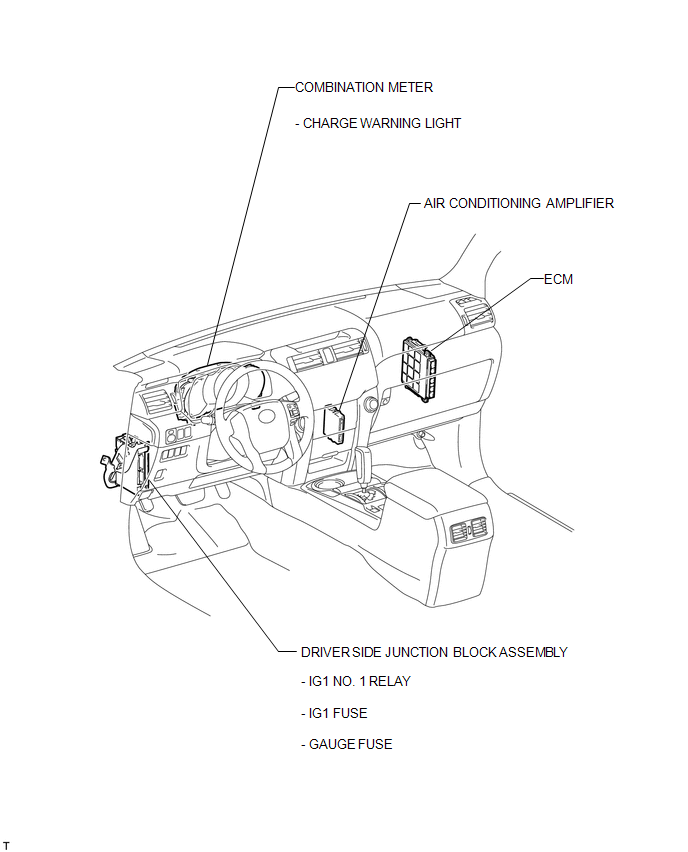

Parts Location
PARTS LOCATION
ILLUSTRATION
ILLUSTRATION
System Diagram
SYSTEM DIAGRAM
On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. CHECK BATTERY CONDITION
NOTICE:
If the battery is weak or if the engine is difficult to start, perform the following procedures.
(a) Check the battery for damage and deformation. If severe damage, deformation or leakage is found, replace the battery.
(b) Check the electrolyte quantity of each cell.
HINT:
Before checking the battery voltage, turn off all the electrical systems (headlights, blower motor, rear defogger, etc.).
(1) For maintenance-free batteries:
(2) For non-maintenance-free batteries:
Standard specific gravity:
1.25 to 1.29 at 20°C (68°F)
(c) Turn the ignition switch off and turn on the headlights for 20 to 30 seconds. This removes the surface charge from the battery.
(d) Measure the battery voltage between the negative (-) and positive (+) terminals of the battery.
Standard voltage:
12.5 to 12.9 V at 20°C (68°F)
If the voltage is less than the specification, recharge the battery.
2. INSPECT BATTERY TERMINAL AND FUSE
(a) Visually check the battery terminals.
(1) Check that the battery terminals are not loose or corroded.
Torque:
Battery positive (+) terminal :
5.4 N·m {55 kgf·cm, 48 in·lbf}
Battery negative (-) terminal :
5.4 N·m {55 kgf·cm, 48 in·lbf}
(b) Check the H-fuse and fuses.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection |
Condition |
Specified Condition |
---|---|---|
ALT H-fuse |
Always |
Below 1 Ω |
ALT-S fuse |
||
GAUGE fuse |
||
IG1 fuse |
If the result is not as specified, replace the fuses as necessary.
3. INSPECT FAN AND GENERATOR V BELT
4. INSPECT GENERATOR WIRING
(a) Visually check the generator wiring.
(1) Check that the wiring is in good condition.
5. CHECK FOR ABNORMAL NOISES
(a) Listen for abnormal noises from the generator.
(1) Check that no abnormal noises are heard from the generator while the engine is running.
6. INSPECT CHARGE WARNING LIGHT CIRCUIT
(a) Turn the ignition switch to ON. Check that the charge warning light comes on.
(b) Start the engine and check that the light goes off.
If the light does not operate as specified, troubleshoot the charge warning light circuit.
7. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) Connect a voltmeter and ammeter to the charging circuit as follows. Text in Illustration
(1) Disconnect the wire from terminal B of the generator, and then connect it to the negative (-) lead of an ammeter. (2) Connect the positive (+) lead of the ammeter to terminal B of the generator. (3) Connect the positive (+) lead of a voltmeter to the positive (+) terminal of the battery. (4) Ground the negative (-) lead of the voltmeter. |
|
(b) Check the charging circuit.
(1) Maintain the engine speed at 2000 rpm and check the reading on the ammeter and voltmeter.
Standard current:
10 A or less
Standard voltage:
13.2 to 14.8 V
If the voltmeter reading is higher than the standard voltage, replace the generator.
HINT:
If the battery is not fully charged, the ammeter reading will sometimes be higher than the standard current.
8. INSPECT CHARGING CIRCUIT WITH LOAD
(a) With the engine running at 2000 rpm, turn the high beam headlights on and turn the heater blower switch to the HI position.
(b) Check the reading on the ammeter.
Standard current:
30 A or higher
If the ammeter reading is less than the standard current, repair the generator.
HINT:
If the battery is fully charged, the indication will sometimes be less than the standard current. If this is the case, add more electrical load (operate the wipers, rear window defogger, etc.) and check the reading on the ammeter again.
