Toyota 4Runner: Components

COMPONENTS

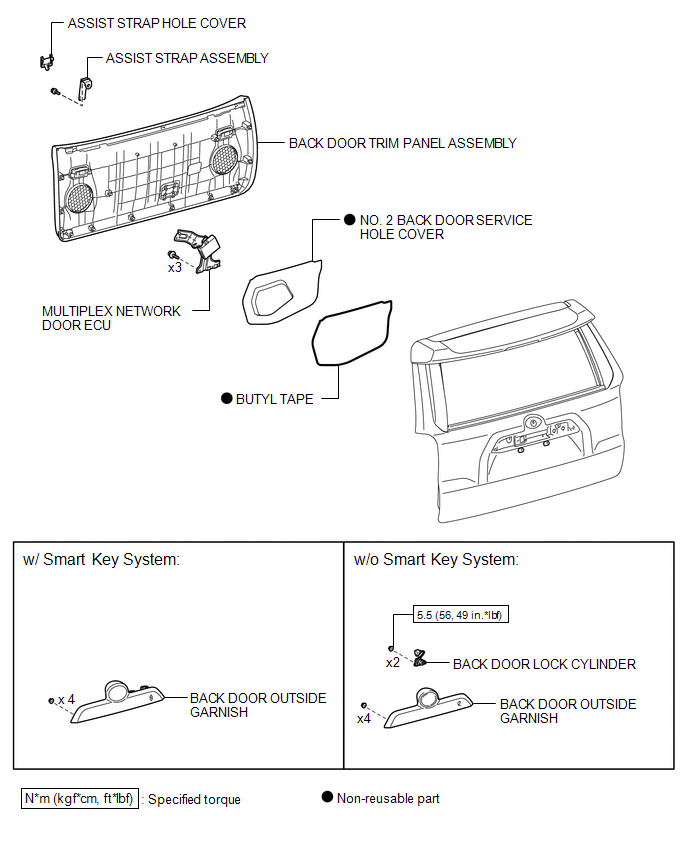

ILLUSTRATION


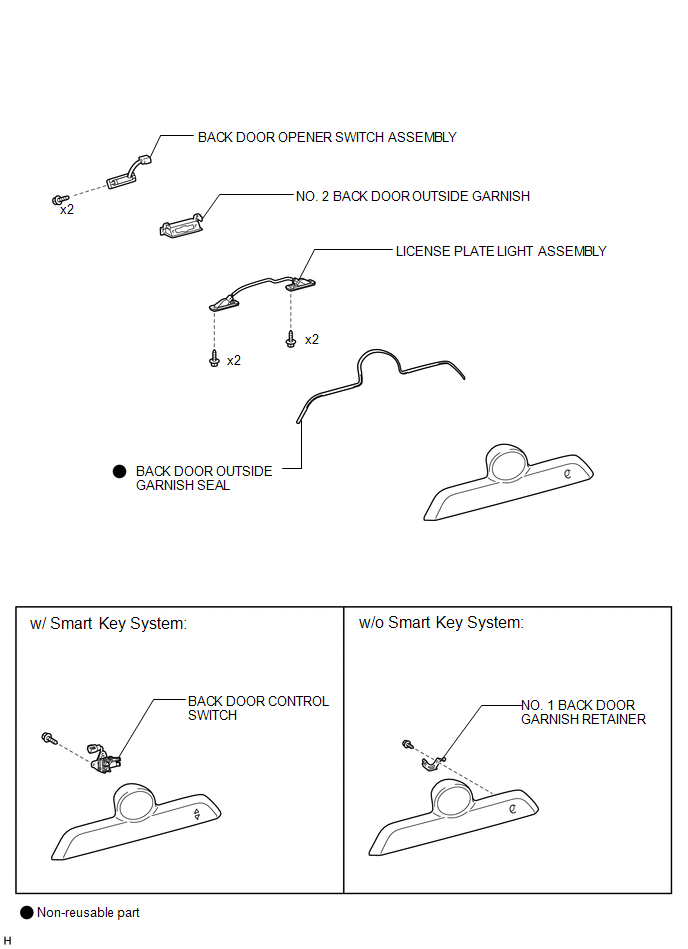

ILLUSTRATION


Back Door Outside Garnish
...

Removal
REMOVAL PROCEDURE 1. REMOVE ASSIST STRAP HOLE COVER 2. REMOVE ASSIST STRAP ASSEMBLY 3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY 4. REMOVE MULTIPLEX NETWORK DOOR ECU 5. REMOVE NO. 2 BACK ...
