Toyota 4Runner: Components

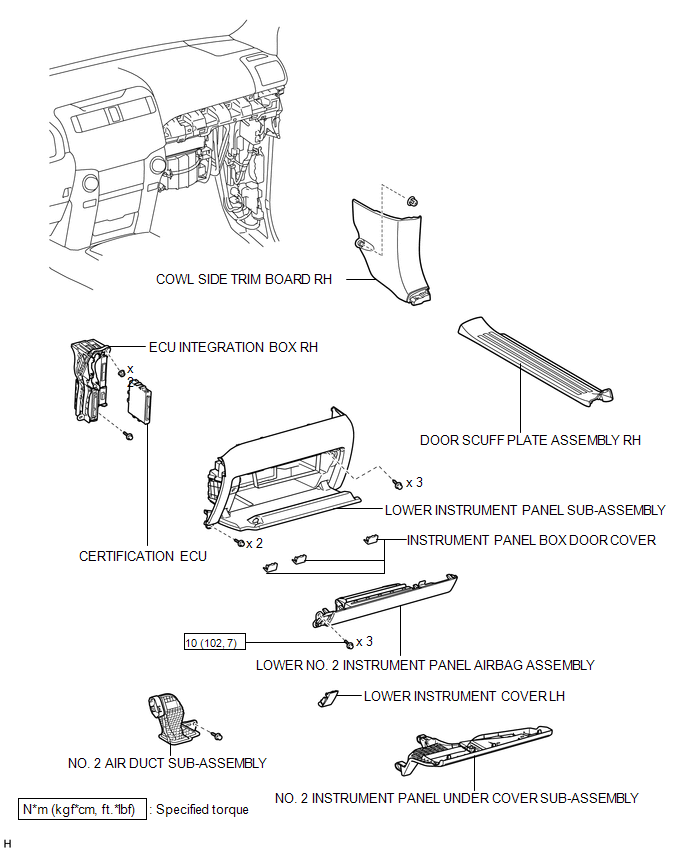

Certification Ecu

...

Installation

INSTALLATION PROCEDURE 1. INSTALL CERTIFICATION ECU (a) Attach the 2 claws to install the certification ECU. 2. INSTALL ECU INTEGRATION BOX RH (a) Install the certification ECU with bracket with ...

Other materials about Toyota 4Runner:

Removal
REMOVAL PROCEDURE 1. REMOVE REAR NO. 2 SEAT ASSEMBLY (a) Remove the rear No. 2 seat assembly (See page ). 2. REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat) 3. REMOVE QUARTER SCUFF PLATE LH (w/ Rear No. 2 Seat) 4. REMOVE QUARTER SCUFF PLA ...

System Diagram
SYSTEM DIAGRAM Communication Table Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Line ECM Power management control ECU Crankshaft position sensor signa ...
