Toyota 4Runner: Disassembly

Toyota 4Runner Service Manual / Drivetrain / Axle And Differential / Front Axle Hub(for 4wd) / Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE FRONT AXLE WITH ABS ROTOR BEARING ASSEMBLY LH

(a) Gently fix the front axle hub in a vise between aluminum plates.

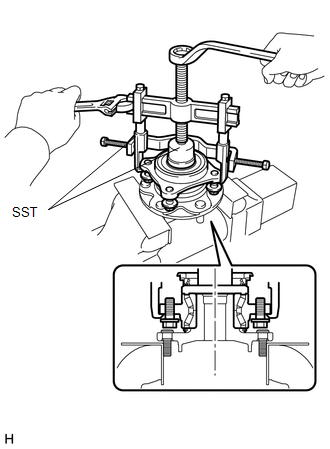

(b) Using SST, remove the bearing.

SST: 09710-30021

09710-03051

SST: 09950-40011

09951-04020

09952-04010

09953-04020

09954-04010

09955-04061

09957-04010

09958-04011

2. REMOVE FRONT AXLE HUB OIL SEAL LH

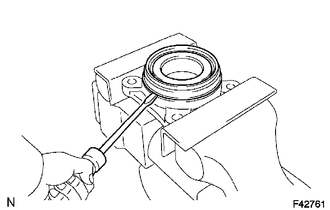

(a) Using a screwdriver, remove the front axle hub oil seal.

Removal

REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. REMOVE FRONT WHEEL 2. REMOVE D ...

Reassembly

REASSEMBLY PROCEDURE 1. INSTALL FRONT AXLE HUB OIL SEAL LH (a) Using SST and a press, press in a new oil seal. SST: 09608-36010 SST: 09950-70010 09951-07100 NOTICE: Do not ...
