DISPOSAL
CAUTION / NOTICE / HINT
CAUTION:
Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.
PROCEDURE
1. PRECAUTION
HINT:
When scrapping a vehicle equipped with the SRS or disposing of the lower No. 1 instrument panel airbag, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.
CAUTION:
2. DISPOSE OF LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (WHEN INSTALLED IN VEHICLE)
HINT:
Prepare a battery as the power source to deploy the airbag.
(a) Check the function of SST (See page ). |
|
(b) Read the precaution (See page ).
(c) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).
(d) Remove the lower No. 1 instrument panel airbag (See page ).

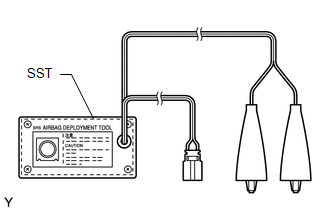

(e) Install SST.
SST: 09082-00700
SST: 09082-00780

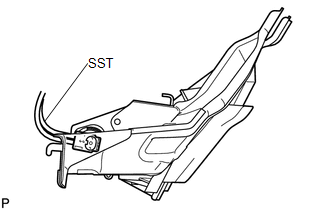

(1) Connect SST connector to the lower No. 1 instrument panel airbag.
NOTICE:
To avoid damaging SST connector and wire harness, do not lock the secondary lock of the twin lock.
(2) Install the lower No. 1 instrument panel airbag (See page ).
NOTICE:
Take care not to damage SST wire harness.

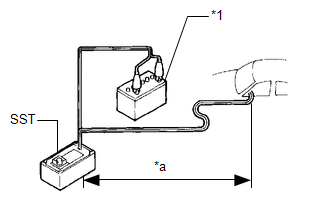

(3) Move SST at least 10 m (32.8 ft.) away from the vehicle front side window. Text in Illustration
|
|
(4) Maintaining enough clearance for SST wire harness in the front side window, close all doors and windows of the vehicle.
NOTICE:
Take care not to damage SST wire harness.
(5) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
(f) Deploy the airbag.
(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.
(2) Press SST activation switch to deploy the airbag.
CAUTION:
HINT:
The airbag is deployed as the LED of SST activation switch comes on.
3. DISPOSE OF LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (WHEN NOT INSTALLED IN VEHICLE)
NOTICE:
Be sure to follow the procedure detailed below when deploying the airbag.
HINT:
Prepare a battery as the power source to deploy the airbag.
(a) Check the function of SST (See page ). |
|
(b) Remove the lower No. 1 instrument panel airbag (See page ).
CAUTION:
(c) Using a service-purpose wire harness for the vehicle, tie the lower No. 1 instrument panel airbag to a tire.

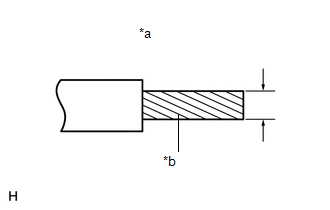

Text in Illustration
*a |
Wire Harness Diameter |
*b |
Stripped Wire Harness Section |
Cross-sectional area of stripped wire harness section:
1.25 mm2 (0.00192 in.2) or more
CAUTION:
If the wire harness is too thin or an alternative object is used to tie the lower No. 1 instrument panel airbag, it may be snapped by the shock when the airbag is deployed. Always use a wire harness for vehicle use with a cross-sectional area of at least 1.25 mm2 (0.00192 in.2).
HINT:
To calculate the cross-sectional area of the stripped wire harness section: Cross-sectional area = 3.14 x (Diameter)2 / 4
(1) Position the lower No. 1 instrument panel airbag inside a tire with the airbag deployment side facing inside.

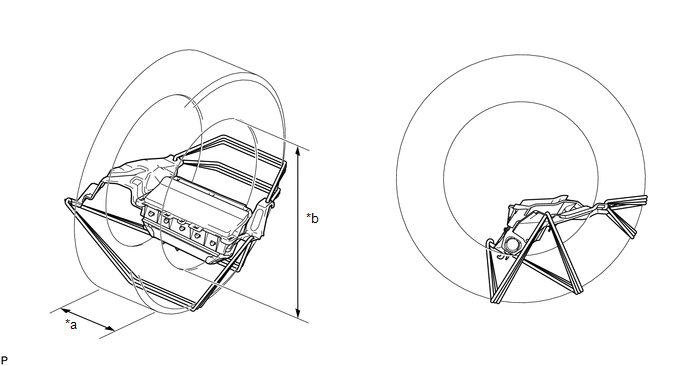

Text in Illustration
*a |
Width |
*b |
Inner Diameter |
Tire size:
Must exceed the following dimensions
Width
185 mm (7.28 in.)
Inner diameter
360 mm (14.2 in.)
(2) Tie the lower No. 1 instrument panel airbag to the tire with several wire harnesses.
CAUTION:
NOTICE:
As the tire may be damaged by the airbag deployment, use a tire that you are planning to throw away.

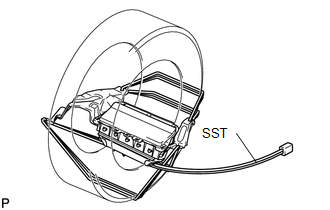

(d) Connect SST connector to the lower No. 1 instrument panel airbag. SST: 09082-00780 |
|
(e) Place tires.

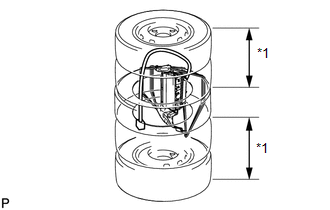

Text in Illustration
*1 |
Tire (2 or more) |
(1) Place at least 2 tires under the tire which the lower No. 1 instrument panel airbag is tied to.
(2) Place at least 2 tires over the tire which the lower No. 1 instrument panel airbag is tied to. The top tire should have a disc wheel installed.
NOTICE:

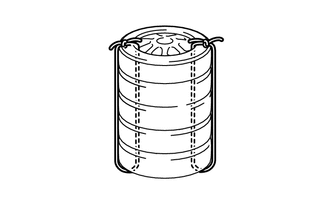

(3) Tie the tires together with 2 wire harnesses. CAUTION: Make sure that the wire harnesses are tight. Looseness in the wire harnesses results in the tires coming free due to the shock when the airbag is deployed. |
|
(f) Connect SST connector. Text in Illustration
SST: 09082-00700 NOTICE: To avoid damaging SST connector and wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for SST wire harness inside the tires. |
|
(g) Deploy the airbag.
(1) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
(2) Check that no one is within a 10 m (32.8 ft.) radius of the tire which the lower No. 1 instrument panel airbag is tied to.
(3) Press SST activation switch to deploy the airbag.
CAUTION:
When deploying the airbag, make sure that no one is near the tires.
HINT:
The airbag is deployed as the LED of SST activation switch comes on.
(h) Dispose of the lower No. 1 instrument panel airbag. CAUTION:

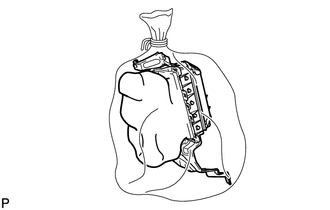

(1) Remove the lower No. 1 instrument panel airbag from the tire. (2) Place the lower No. 1 instrument panel airbag in a plastic bag, tie it tightly and dispose of it in the same way as other general parts. |
|
