DTC CHECK / CLEAR
1. CHECK/CLEAR DTC (USING TECHSTREAM)
(a) Check DTC:
(1) Connect the Techstream to the DLC3.
(2) Turn the ignition switch to ON.
(3) Turn the Techstream on.
(4) Enter the following menus: Chassis / KDSS / Trouble Codes.
(5) Read DTCs by following the prompts on the Techstream screen.
HINT:
Refer to the Techstream operator's manual for further details.
(b) Clear DTC:
HINT:
After repairing malfunctions, clear the DTCs.
(1) Connect the Techstream to the DLC3
(2) Turn the ignition switch to ON.
(3) Turn the Techstream on.
(4) Enter the following menus: Chassis / KDSS / Trouble Codes.
(5) Clear the DTCs by following the prompts on the Techstream screen.
HINT:
Refer to the Techstream operator's manual for further details.
2. CHECK/CLEAR DTC (USING SST CHECK WIRE)
(a) Check DTC.
(1) Make sure that the ignition switch is off.
(2) Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST: 09843-18040
NOTICE:
Do not connect the wrong terminals as this will cause damage.

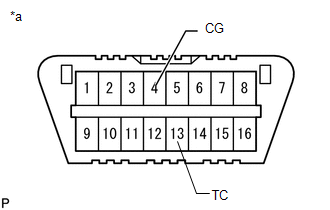

*a |
Front view of DLC3 |
(3) Turn the ignition switch to ON.
(4) Read the DTCs output from the KDSS indicator light in the combination meter.
HINT:
(5) Refer to the Diagnostic Trouble Code Chart (See page
) for DTC information.
(6) After completing the check, remove SST check wire from the DLC3.
SST: 09843-18040
(b) Clear DTC.
(1) Make sure that the ignition switch is off.
(2) Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST: 09843-18040
NOTICE:
Do not connect the wrong terminals as this will cause damage.
*a |
Front view of DLC3 |
(3) Turn the ignition switch to ON.
(4) Clear the DTCs stored in the stabilizer control ECU by depressing the brake pedal 8 times or more within 5 seconds.
(5) Check that the KDSS indicator light blinks at intervals of 0.25 seconds on and 0.25 seconds off.
(6) Turn the ignition switch off.
(7) Remove SST from the terminals of the DLC3.
SST: 09843-18040
NOTICE:
After clearing the DTCs, check if the malfunction is detected again. As it is necessary to perform certain system operations or drive the vehicle in order to detect some malfunctions, check that malfunctions are no longer present after performing all necessary operations.
