INSPECTION

PROCEDURE

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
4 (L) - 3 (E)	Lock	Below 1 Ω
4 (L) - 3 (E)	Off	10 kΩ or higher
2 (UL) - 3 (E)	Unlock	Below 1 Ω
2 (UL) - 3 (E)	Off	10 kΩ or higher

If the result is not as specified, replace the door control switch assembly.

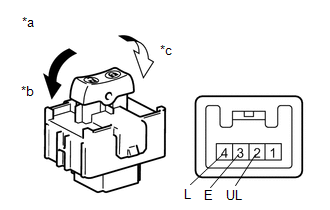

Text in Illustration

Component without harness connected

(Door Control Switch Assembly)

Unlock

Lock

Removal

REMOVAL PROCEDURE 1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH RH (a) Detach the 2 clips and remove the front door lower frame bracket garnish RH. ...
