INSPECTION
PROCEDURE
1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection |
Condition |
Specified Condition |
---|---|---|
|
Shift lever in P |
Below 1 Ω |
2 (RB) - 1 (RL) |
Shift lever in R |
Below 1 Ω |
|
Shift lever in N |
Below 1 Ω |
2 (RB) - 7 (DL) |
|
Below 1 Ω |
|
Shift lever not in P |
10 kΩ or higher |
2 (RB) - 1 (RL) |
Shift lever not in R |
10 kΩ or higher |
|
Shift lever not in N |
10 kΩ or higher |
2 (RB) - 7 (DL) |
|
10 kΩ or higher |
*1 |

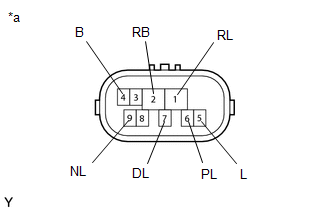

Component without harness connected (Park/Neutral Position Switch) |
If the result is not as specified, replace the switch.
