Toyota 4Runner Service Manual / Vehicle Interior / Door Lock / Door Control Transmitter(w/o Smart Key System) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

Take extra care when handling these precision electronic components.

PROCEDURE

1. INSTALL TRANSMITTER BATTERY

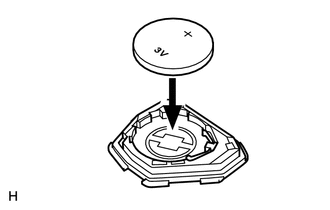

(a) Install the battery (lithium battery: CR2016) with the positive (+) side facing upward as shown in the illustration.

NOTICE:

Be careful not to bend the transmitter battery electrode during insertion.
Keep the transmitter cover interior free of dust and oil.

(b) Install the cover.

2. INSTALL DOOR CONTROL TRANSMITTER PACKING

3. INSTALL DOOR CONTROL TRANSMITTER MODULE

(a) Install the door control transmitter module.

4. INSTALL TRANSMITTER HOUSING COVER

(a) Install the transmitter housing cover to the transmitter housing case.

(b) Check that the transmitter LED illuminates 3 times when a switch is pressed 3 times.

Inspection

INSPECTION PROCEDURE 1. INSPECT DOOR CONTROL TRANSMITTER MODULE (a) Inspect the operation of the transmitter. (1) Remove the battery (lithium battery) from the transmitter (See page ). ...
