Toyota 4Runner: Panel Switches do not Function

Toyota 4Runner Service Manual / Audio / Visual / Telematics / Navigation / Multi Info Display / Navigation System / Panel Switches do not Function

CAUTION / NOTICE / HINT

NOTICE:

After replacing the navigation receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

PROCEDURE

1.	CHECK PANEL SWITCH

(a) Check for foreign matter around the switches that might prevent operation.

OK:

No foreign matter is found.

REMOVE ANY FOREIGN MATTER FOUND

2.	CHECK PANEL SWITCH (OPERATION CHECK)

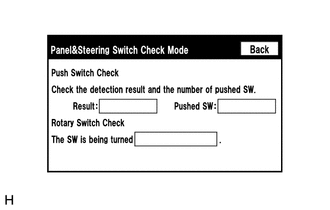

(a) Enter the "Panel & Steering Switch Check Mode" screen. Refer to Check Panel & Steering Switch in Operation Check (See page
).

(b) Operate the abnormal switch and check if the switch status is correctly displayed.

OK:

The switch status is correctly displayed as operated.

REPLACE NAVIGATION RECEIVER ASSEMBLY

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
