Toyota 4Runner: Removal

Toyota 4Runner Service Manual / Drivetrain / A750e Automatic Transmission / Transaxle / Valve Body Assembly / Removal

REMOVAL

PROCEDURE

1. DRAIN AUTOMATIC TRANSMISSION FLUID

2. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

3. REMOVE VALVE BODY OIL STRAINER ASSEMBLY

4. DISCONNECT TRANSMISSION WIRE

5. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

(a) Remove the bolt, detent spring cover and detent spring.

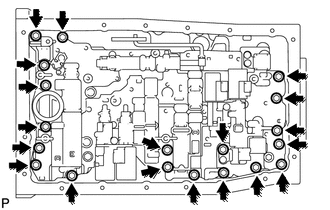

(b) Remove the 19 bolts and valve body.

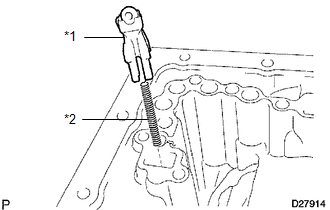

Text in Illustration

*1	Check Ball Body
*2	Spring

NOTICE:

Do not drop the check ball body and spring.

Components

COMPONENTS ILLUSTRATION ILLUSTRATION ...

Disassembly

DISASSEMBLY PROCEDURE 1. REMOVE SHIFT SOLENOID VALVE SR (a) Remove the 2 bolts and solenoid valve. 2. REMOVE SHIFT SOLENOID VALVE SLU ...
