DESCRIPTION
The solenoid turns on when signals are received from the skid control ECU and controls the pressure acting on the wheel cylinders, thus controlling braking force.
DTC Code |
DTC Detection Condition |
Trouble Area |
---|---|---|
C0226 |
An open or short circuit in the SFRH or SFRR circuit continues for 0.05 seconds or more. |
|
C0236 |
An open or short circuit in the SFLH or SFLR circuit continues for 0.05 seconds or more. |
|
C0246 |
An open or short circuit in the SRRH or SRRR circuit continues for 0.05 seconds or more. |
|
C0256 |
An open or short circuit in the SRLH or SRLR circuit continues for 0.05 seconds or more. |
|
C1225 |
An open or short circuit in the SMCF circuit continues for 0.05 seconds or more. |
|
C1226 |
An open or short circuit in the SREA circuit continues for 0.05 seconds or more. |
|
C1227 |
An open or short circuit in the SREC circuit continues for 0.05 seconds or more. |
|
C1228 |
An open or short circuit in the STR circuit continues for 0.05 seconds or more. |
|

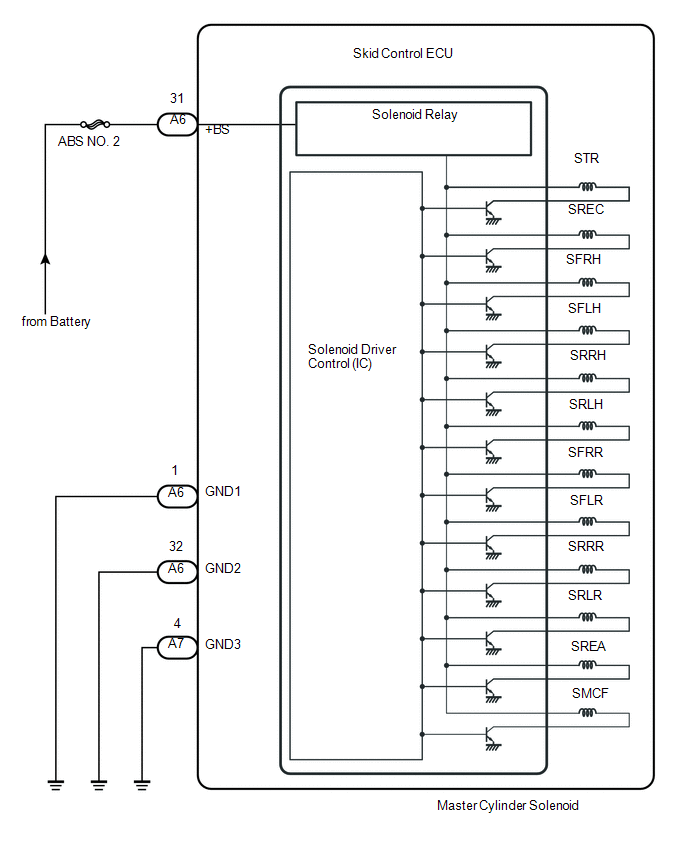

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
When replacing the master cylinder solenoid, perform calibration (See page ).
PROCEDURE
1. |
RECONFIRM DTC |
HINT:
These codes are stored when a problem is detected in the master cylinder solenoid.
The solenoid circuit is in the master cylinder solenoid.
Therefore, solenoid circuit inspections and solenoid unit inspections cannot be performed. Be sure to check if any DTC is output before replacing the master cylinder solenoid.
(a) Clear the DTCs (See page ).
(b) Drive the vehicle at a speed of approximately 32 km/h (20 mph) or more for 60 seconds or more.
(c) Check if the same DTCs are output (See page ).
Result |
Proceed to |
---|---|
DTC is output |
A |
DTC is not output |
B |
A |
REPLACE MASTER CYLINDER SOLENOID |
B |
USE SIMULATION METHOD TO CHECK |
