Toyota 4Runner: Terminals Of Ecu
TERMINALS OF ECU

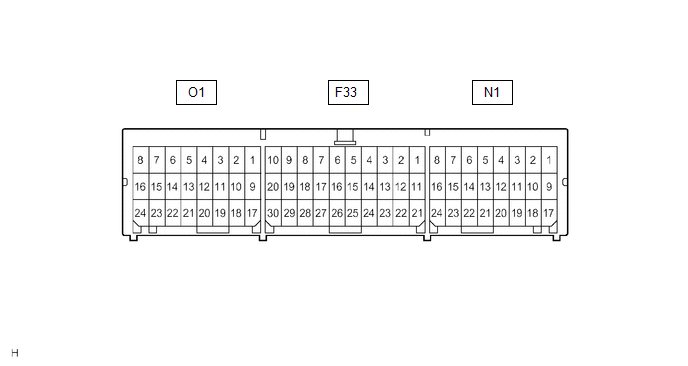

1. AIRBAG SENSOR ASSEMBLY
.png)
|
Terminal No. |
Symbol |
Destination |
|---|---|---|
|
F33-1 |
P2+ |
Instrument panel passenger airbag assembly (Front passenger side squib 2nd step) |
|
F33-2 |
P2- |
Instrument panel passenger airbag assembly (Front passenger side squib 2nd step) |
|
F33-3 |
P- |
Instrument panel passenger airbag assembly (Front passenger side squib) |
|
F33-4 |
P+ |
Instrument panel passenger airbag assembly (Front passenger side squib) |
|
F33-5 |
D+ |
Spiral cable sub -assembly (Driver side squib) |
|
F33-6 |
D- |
Spiral cable sub -assembly (Driver side squib) |
|
F33-7 |
D2- |
Spiral cable sub -assembly (Driver side squib 2nd step) |
|
F33-8 |
D2+ |
Spiral cable sub -assembly (Driver side squib 2nd step) |
|
F33-9 |
DK+ |
Lower No. 1 instrument panel airbag assembly (Driver side knee squib) |
|
F33-10 |
DK- |
Lower No. 1 instrument panel airbag (Driver side knee squib) |
|
F33-13 |
CANH |
CAN communication line |
|
F33-17 |
P-AB |
Telltale light assembly (Passenger airbag ON/OFF indicator) |
|
F33-19 |
PK+ |
Lower No. 2 instrument panel airbag assembly (Front passenger side knee squib) |
|
F33-20 |
PK- |
Lower No. 2 instrument panel airbag assembly (Front passenger side knee squib) |
|
F33-21 |
IG2 |
IGN fuse |
|
F33-22 |
CANL |
CAN communication line |
|
F33-23 |
PAON |
Telltale light assembly (Passenger airbag ON/OFF indicator) |
|
F33-24* |
GSW3 |
Telematics transceiver |
|
F33-25 |
E1 |
Ground |
|
F33-26 |
E2 |
Ground |
|
F33-27 |
-SR |
Front airbag sensor RH |
|
F33-28 |
-SL |
Front airbag sensor LH |
|
F33-29 |
+SR |
Front airbag sensor RH |
|
F33-30 |
+SL |
Front airbag sensor LH |
|
O1-1 |
SFL+ |
Front seat side airbag assembly LH (Front side squib LH) |
|
O1-2 |
SFL- |
Front seat side airbag assembly LH (Front side squib LH) |
|
O1-3 |
ICL- |
Curtain shield airbag assembly LH (Curtain shield squib LH) |
|
O1-4 |
ICL+ |
Curtain shield airbag assembly LH (Curtain shield squib LH) |
|
O1-5 |
PL+ |
Front seat outer belt assembly LH (Front pretensioner squib LH) |
|
O1-6 |
PL- |
Front seat outer belt assembly LH (Front pretensioner squib LH) |
|
O1-10 |
LBE+ |
Front seat inner belt assembly LH (Seat belt buckle switch LH) |
|
O1-18 |
LBE- |
Front seat inner belt assembly LH (Seat belt buckle switch LH) |
|
O1-23 |
BBL- |
Rear airbag sensor LH |
|
O1-24 |
BBL+ |
Rear airbag sensor LH |
|
N1-3 |
PR- |
Front seat outer belt assembly RH (Front pretensioner squib RH) |
|
N1-4 |
PR+ |
Front seat outer belt assembly RH (Front pretensioner squib RH) |
|
N1-5 |
ICR+ |
Curtain shield airbag assembly RH (Curtain shield squib RH) |
|
N1-6 |
ICR- |
Curtain shield airbag assembly RH (Curtain shield squib RH) |
|
N1-7 |
SFR- |
Front seat side airbag assembly RH (Front side squib RH) |
|
N1-8 |
SFR+ |
Front seat side airbag assembly RH (Front side squib RH) |
|
N1-16 |
FSR+ |
Occupant detection ECU |
|
N1-17 |
BBR+ |
Rear airbag sensor RH |
|
N1-18 |
BBR- |
Rear airbag sensor RH |
|
N1-21 |
BDR+ |
Rear floor side airbag sensor |
|
N1-22 |
BDR- |
Rear floor side airbag sensor |
|
N1-24 |
FSR- |
Occupant detection ECU |
- *: w/ Telephone Switch
