DESCRIPTION
When a USB device or "iPod" is connected to the USB jack of the No. 1 stereo jack adapter assembly, it must have playable files. The device must also communicate with and be recognized by the navigation receiver assembly. This diagnosis procedure is for when a device is not recognized, or files from the device cannot be played normally.

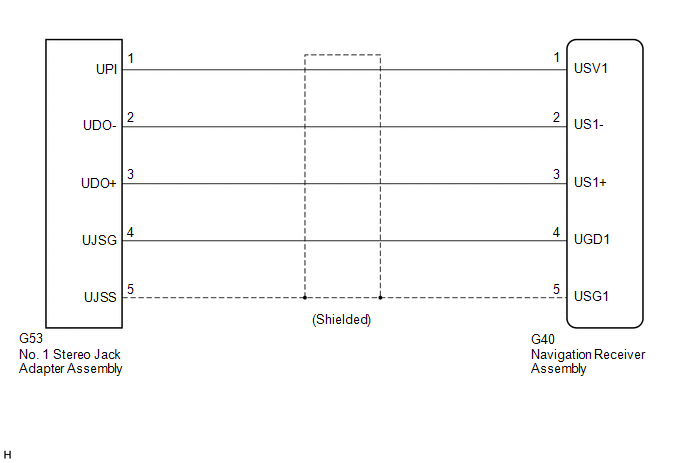

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
After replacing the navigation receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.
HINT:
PROCEDURE
1. |
CHECK USB DEVICE OR "iPod" |
(a) Disconnect the USB device or "iPod" from the No. 1 stereo jack adapter assembly.
(b) Check if playable files are present on the USB device or "iPod".
HINT:
Refer to System Description for playable files (See page
).
(c) Check if the USB device is a compatible format or "iPod" is a compatible version.
HINT:
Refer to System Description for compatible formats and versions (See page
).
Result |
Proceed to |
---|---|
No playable files exist, or incompatible device format or version |
A |
Playable files exist, and compatible device format or version |
B |
A | ![]() |
END (USB DEVICE FORMAT WAS INCOMPATIBLE, "iPod" VERSION WAS INCOMPATIBLE, OR NO PLAYABLE FILES PRESENT) |
|
2. |
CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - NO. 1 STEREO JACK ADAPTER ASSEMBLY) |
(a) Disconnect the G53 No. 1 stereo jack adapter assembly connector. |
|
(b) Disconnect the G40 navigation receiver assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection |
Condition |
Specified Condition |
---|---|---|
G53-1 (UPI) - G40-1 (USV1) |
Always |
Below 1 Ω |
G53-2 (UDO-) - G40-2 (US1-) |
Always |
Below 1 Ω |
G53-3 (UDO+) - G40-3 (US1+) |
Always |
Below 1 Ω |
G53-4 (UJSG) - G40-4 (UGD1) |
Always |
Below 1 Ω |
G53-5 (UJSS) - G40-5 (USG1) |
Always |
Below 1 Ω |
G53-1 (UPI) - Body ground |
Always |
10 kΩ or higher |
G53-2 (UDO-) - Body ground |
Always |
10 kΩ or higher |
G53-3 (UDO+) - Body ground |
Always |
10 kΩ or higher |
G53-4 (UJSG) - Body ground |
Always |
10 kΩ or higher |
G53-5 (UJSS) - Body ground |
Always |
10 kΩ or higher |

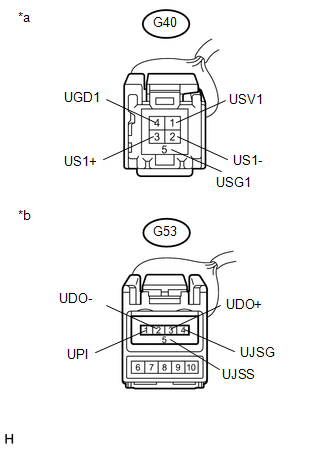

*a |
Front view of wire harness connector (to Navigation Receiver Assembly) |
*b |
Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly) |
NG | ![]() |
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
3. |

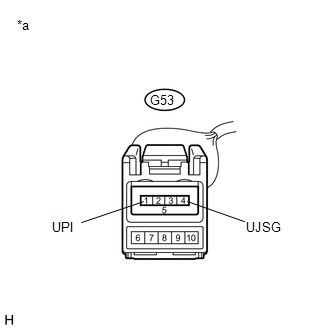

INSPECT NAVIGATION RECEIVER ASSEMBLY (NO. 1 STEREO JACK ADAPTER ASSEMBLY POWER SOURCE) |
(a) Reconnect the G40 navigation receiver assembly connector.
(b) Measure the voltage according to the value(s) in the table below. Standard Voltage:
|
|
NG | ![]() |
REPLACE NAVIGATION RECEIVER ASSEMBLY |
|
4. |
FORMAT USB DEVICE OR RESTORE "iPod" AND RECHECK |
(a) Delete all files in the USB device or "iPod" and format/restore it.
NOTICE:
Formatting a USB device or restoring an "iPod" erases all music on the device. Ensure that backup music data is available before performing this operation.
(b) Save the data again and check if it can be played on the in-vehicle device.
OK:
Malfunction disappears.
OK | ![]() |
END |
|
5. |
REPLACE USB DEVICE OR "iPod" |
(a) Turn the ignition switch off.
HINT:
When this malfunction occurs, it is necessary to turn off the ignition switch to make it possible for the vehicle to recognize a new device when it is connected.
(b) Turn the ignition switch to ACC.
(c) Connect a known good USB device or "iPod" to the No. 1 stereo jack adapter assembly.
HINT:
|
6. |
CHECK USB DEVICE OR "iPod" |
(a) Check if a USB device or "iPod" is recognized by the navigation receiver assembly, and if information such as track, artist and album names are displayed on the screen.
OK:
USB device or "iPod" is recognized properly and the information is displayed on the screen.
OK | ![]() |
USB DEVICE OR "iPod" WAS INCOMPATIBLE OR DEFECTIVE |
NG | ![]() |
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
