Toyota 4Runner: Vehicle Speed Signal Malfunction (B2282,B2283)

Toyota 4Runner Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Smart Key System(for Start Function) / Vehicle Speed Signal Malfunction (B2282,B2283)

DESCRIPTION

The power management control ECU and the combination meter are connected by a cable and the CAN communication lines. This DTC is stored when the vehicle speed signal information from the cable and the vehicle speed signal information from the CAN communication line are inconsistent.

HINT:

When the power management control ECU is replaced with a new one and the cable is connected to the negative (-) battery terminal, the power source mode is reset to on (IG). When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

DTC Code	DTC Detection Condition	Trouble Area
B2282	The vehicle speed signal information from the cable and the vehicle speed signal information from the CAN communication line are inconsistent.	CAN communication system Power management control ECU Meter/gauge system Harness or connector

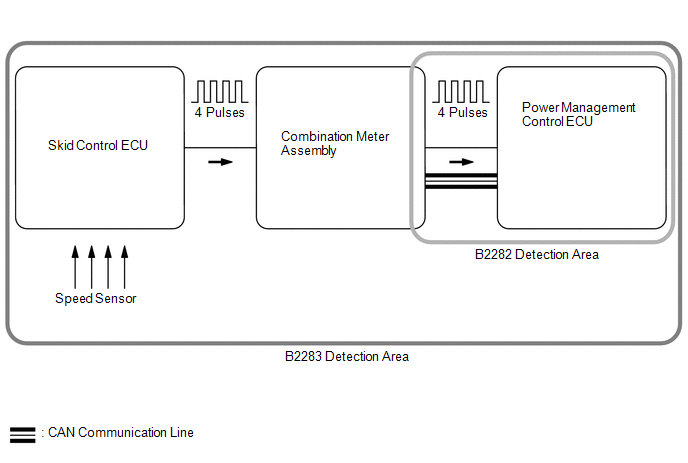

The skid control ECU converts signals from the speed sensor into 4-pulse signals and sends them to the combination meter. After these signals are converted into a more precise rectangular waveform by the waveform shaping circuit inside the combination meter, they are then transmitted to the power management control ECU. The power management control ECU determines the vehicle speed based on the frequencies of these pulse signals.

DTC Code	DTC Detection Condition	Trouble Area
B2283	Both conditions are met: The vehicle speed decreases significantly. The vehicle speed does not correspond with the engine speed.	Power management control ECU Meter/gauge system Skid control ECU Speed sensor Harness or connector

HINT:

A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter. The signal is changed to a pulse signal at the transistor in the combination meter. Each ECU controls its respective system based on the pulse signal.
If a short circuit occurs in an ECU, all systems related to the components in the diagram above will not operate normally.

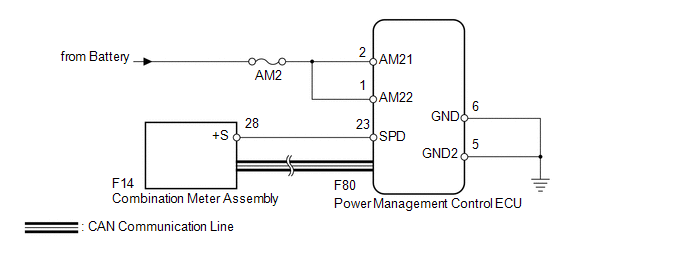

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

When using the Techstream with the engine switch off to troubleshoot: Connect the Techstream to the vehicle and turn a courtesy light switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.
Before performing the inspection, check that there are no problems related to the CAN communication system and LIN communication system.
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1.	CHECK HARNESS AND CONNECTOR (BATTERY - POWER MANAGEMENT CONTROL ECU)

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.	CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND)

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.	CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - COMBINATION METER)

(a) Disconnect the F80 power management control ECU connector.

(b) Disconnect the F14 combination meter assembly connector.

Standard Resistance:

Tester Connection	Condition	Specified Condition
F80-23 (SPD) - F14-28 (+S)	Always	Below 1 Ω
F80-23 (SPD) - Body ground	Always	10 kΩ or higher

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.	READ VALUE USING TECHSTREAM (VEHICLE SPEED SIGNAL)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Enter the following menus: Body Electrical / Power Source Control / Data List.

(e) According to the display on the Techstream, read the Data List.

Power Source Control

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Vehicle Speed Signal	Vehicle speed signal / Stop or Run	Stop: Vehicle stopped Run: Vehicle driven (5 km/h (3 mph) or higher)	-

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

Vehicle Speed Signal

Vehicle speed signal / Stop or Run

Stop: Vehicle stopped

Run: Vehicle driven (5 km/h (3 mph) or higher)

OK:

Stop (vehicle stopped) or Run (vehicle driven) appears on the screen according the vehicle speed.

GO TO METER/GAUGE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

5.	CHECK POWER MANAGEMENT CONTROL ECU

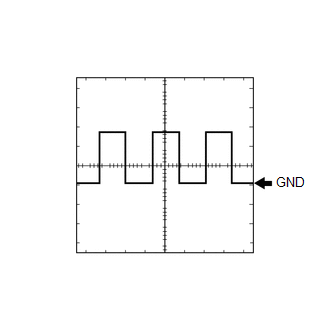

(a) Using an oscilloscope, check the vehicle speed input signal waveform from the combination meter at the terminal of the power management control ECU.

Text in Illustration

Component with harness connected

(Power Management Control ECU)

(b) Check the signal waveform according to the condition(s) in the table below.

Standard Frequency:

Tester Connection	Tool Setting	Condition	Specified Condition
F80-23 (SPD) - Body ground	5 V/DIV., 10 ms./DIV.	Engine switch on (IG), vehicle being driven at approx. 5 km/h (3 mph)	Correct waveform as shown in illustration

REPLACE POWER MANAGEMENT CONTROL ECU

GO TO METER/GAUGE SYSTEM (TERMINALS OF ECU)
