Toyota 4Runner Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Dimmer Switch / Components

COMPONENTS

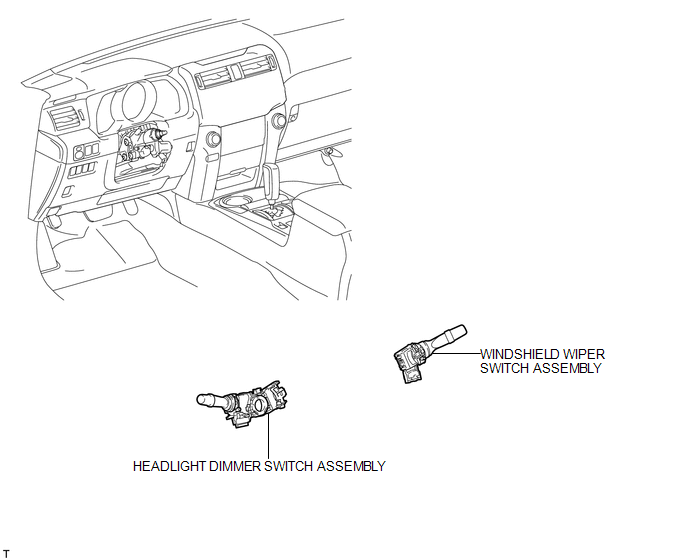

ILLUSTRATION

Removal

REMOVAL PROCEDURE 1. REMOVE SPIRAL CABLE SUB-ASSEMBLY (a) Remove the spiral cable sub-assembly (See page ). 2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY 3. REMOVE HEADLIGHT DIMMER SWITCH ASSEM ...
