INSTALLATION
PROCEDURE
1. INSTALL NO. 1 CONSOLE BOX MOUNTING BRACKET
(a) Install the console box mounting bracket with the 2 screws.
2. INSTALL SHIFT LEVER ASSEMBLY

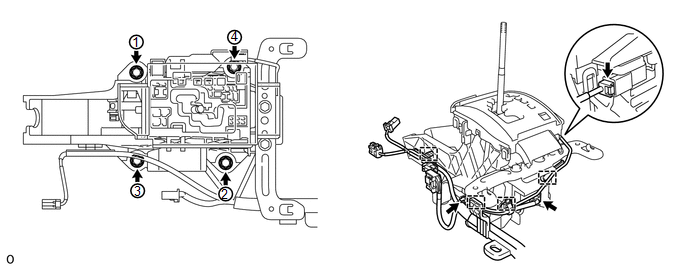

(a) Install the transmission floor shift with the 4 bolts tighten the bolt in the order shown in the illustration.
Torque:
14 N·m {143 kgf·cm, 10 ft·lbf}
(b) Connect the 3 connectors and attach the 4 wire harness clamps.
3. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

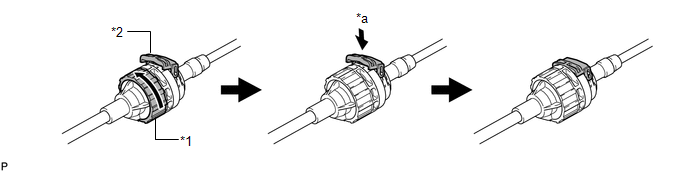

(a) Turn the socket of the transmission control cable 180° counterclockwise. While holding the socket in place, push in the lock piece until the lock piece clicks twice.
NOTICE:
Do not over-rotate the socket as it will come off the internal spring and the transmission control cable will not be reusable.
*1 |
Socket |
*2 |
Lock Piece |
*a |
Push in |
- |
- |
HINT:
If the lock piece cannot be pushed in, slightly turn the socket clockwise and then push in the lock piece again.

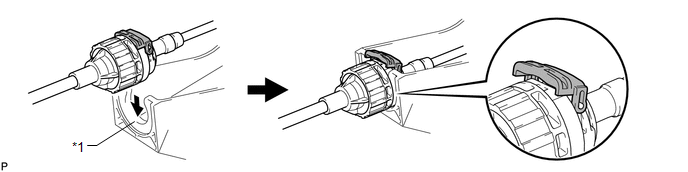

(b) Install the outer part of the transmission control cable to the shift lever retainer. Check that the socket and lock piece are positioned at original position.
*1 |
Shift Lever Retainer |
- |
- |

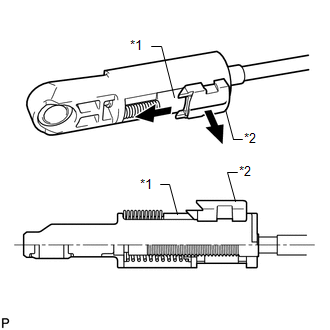

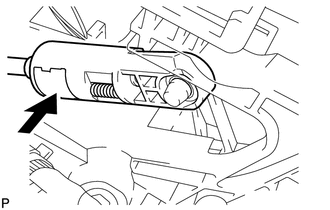

(c) Slide the slider in the direction shown in the illustration and pull out the lock piece. Text in Illustration
|
|

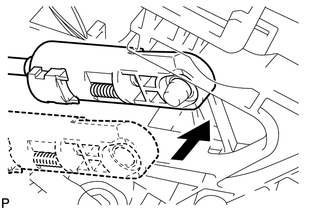

(d) Connect the end of the cable to the shift lever. NOTICE:
|
|
(e) Push the lock piece into the adjuster case and lock it. NOTICE: Make sure that the lock piece is completely locked by the slider. |
|
4. INSPECT SHIFT LEVER POSITION
5. INSTALL REAR CONSOLE BOX ASSEMBLY
(a) Install the rear console box (See page ).
